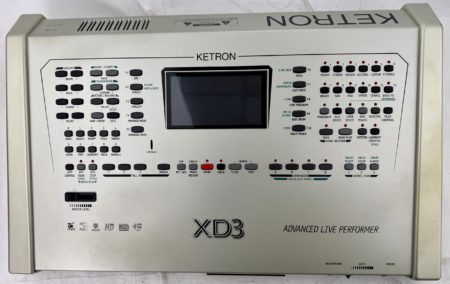

Ketron XD3 MIDI Arranger Module
£450
Specification
POLYPHONY
64 notes. 32 Multitimbral.
SOUND GENERATION
24Mbyte PCM ROM. 290 Presets Sounds. 292 GM Voices. More than 1000 Percussive sounds.
USER VOICES
110 User Voices. Editing : A,D,S,R, Cut Off, Resonance, Effects.
1 TOUCH
60 programmable 1 Touch Sounds. To Style assignment.
DRAWBARS
10 Digital Drawbar effects.
PROGRAMS
120 Programs, 4 Voices, 4 splits. Sustain, Portamento, Velocity switch, Duet, Trio, Morphing,
Steel, Harmony and 2nd voice assign. Single Program & Global loading.
2ND VOICE
292 Second Voices preset & programmable. 2nd Voice Edit .
DRUM 1
24 Drum sets . 24 User Drum Sets. 10 Drum sections. Drum Mixer. Manual Drums.
DRUM 2
50 Live Drum sets.
ARRANGER
172 Internal Styles. Rewritable parameters. 4 Arrangers, 3 Intro/Endings, 4 Fill Ins.(1 break).
Interactive Accompaniment & Brass. Manual Bass. Jump. Tap Tempo. Accelerando-Ritardando.
Tempo control. Pedalboard
functions. Rootless & Standard Chord recognition. Automatic MS Style Conversion.
PATTERN
up to 50 internal Pattern locations. Edit functions : Record, Clear, Copy , Remap. Expansion
memory (optional).
SONG RECORD
real time Song Recording to Disk.
OCTAVE
1 octave Up/Down.
HARMONY
Full, Jazz, Double, Bluegrass, Trill, Repeat, Folk 1, Folk 2.
TRANSPOSER
+/- 24 half tones.
WHEELS
Pitch & Modulation
ARABIC SCALE
13 arabic setups – footswitch assignable. Tune + / – 99 cents per note.
ACCORDION MODE
International, Belgique. Velocity control to Left&Right. Bass&Lower octave. Left Drum to
Bass&Chord.
EFFECTS
Multieffect DSP. 60 different effects. Reverberation, Chorus, Flanger, Delay, Wha Wha, Distortion,
Overdrive, Rotor, Bass Boost. Portamento. Mono – Legato function.
MICRO
Input with Gain control. Echo, Reverb., Pan/Pot, Pitch Shift, Dry..
MIDIFILE PLAYER
SMF Song playback with karaoke and Txt files. Convert files .kar & Midi type 0 to 1. Juke box.
Intelligent Transposer. Song Chain. Drum & Bass. Lead On/Off. Save Song setup.
DRUM REMIX
Real time interactive Midifile and Style playing. Song and Style select.
MIDI
In 1, In2 , Out, Thru. 32 Midi Channels. GM standard.
FLOPPY DISK
3.5 2DD/HD.
DISPLAY
240 x 128 pixel backlit graphic TCF.
OUTPUT

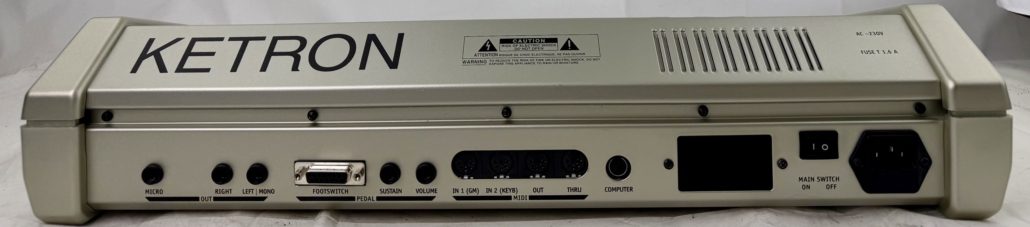

Left/Mono, Right. Sustain and Volume Pedal. Footswitch (6 – 13 switches). Micro out.
INPUT
Stereo headphone. Micro jack.
COMPUTER
PC/Mac Interface socket .
DIMENSIONS
L x W x H = (55 x 25 x 12 cms.) (10 x 22 x 4,8 inches).
WEIGHT
7 Kg. (15,4 lbs)
